IP Camera - Robot Ball
UXGA / 720P
Motion
Detection
Plug &
Play
Pan &
Tilt
Colors available:
Optional: (Exclusively from Macro Plus)
PIR Sensor
Temperature + Humidity sensor

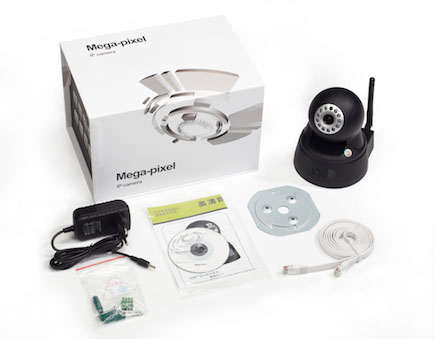

In the box:
Specifications - 2 Megapixel P2P IP camera
| Item No. | IP Robot Ball 2MP | |
| Image Sensor | Sensor | High Definition Color CMOS Sensor |
| Display Resolution | 1600 x 1200 (2Megapixels) | |
| Min. Illumination | 0 Lux (With IR Illuminator) | |
| IR Cut | Yes | |
| Lens | focal length | f:3.6mm |
| Aperture | F:2.4 | |
| Angle of View | 70° | |
| Video | Image Compression | H.264 |
| Image Frame Rate | 30fps maxmium, downward adjustable | |
| Resolution | UXGA (1600 x 1200) 720P(1280 x 720), VGA(640 x 480), QVGA(320 x 240) | |
| Image adjustment | The hue, brightness, contrast, saturation, sharpness are adjustable | |
| Flip image | Flip and mirror | |
| Infrared mode | Automatic or manual | |
| Pan/Tilt Angle | Horizontal:355° & Vertical: 120° | |
| Night visibility | 11pcs IR-LEDs, night vision range up to 8 metres | |
| Audio | Input/Output | Supports two-way audio P2P function |
| Built-in Mic & Speaker | ||
| 3.5mm audio jack for external Mic & Speaker | ||
| Audio Compression | G.726 | |
| Network | Ethernet | One 10/100Mbps RJ45 port |
| Wireless Standard | IEEE802.11b/g/n | |
| Wireless Security | WEP, WPA, WPA2 | |
| WPS | Supports WPS one button push wireless connection | |
| Network Protocol | IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, DDNS, UPnP, RTSP, WPS | |
| System Requirements | Operating System | Microsoft Windows 2000/XP, Vista, 7 |
| iOS, Android | ||
| Browser | Microsoft IE6 and above version or compatible browser | |
| Mozilla Firefox | ||
| Google Chrome | ||
| Apple Safari | ||
| Other Features | Micro SD / TF slot | Yes. Max 32GB |
| Motion Detection | Alarm via E-Mail, upload alarm snapshot to FTP | |
| Reset | Reset button is available | |
| Power | Power Supply | DC 5V/2.0A |
| Power Consumption | 3 Watts (Max.) | |
| Physical | Dimension(LxWxH) | 117(L)*114(W)*129(H) mm |
| Gross Weight | 680.7g | |
| Net Weight | 350g | |
| Environment | Operating Temperature | 0° ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 20% ~ 85% non-condensing | |
| Storage Temperature | -10°C ~ 60° (14°F ~ 140°F) | |
| Storage Humidity | 0% ~ 90% non-condensing | |
| Certification | CE, FCC, RoHS | |
| Warranty | Limited 2-year warranty | |
| Optional | WPS | |
| P2P | ||
| Audio Cable |
Specifications - 1 Megapixel P2P IP camera
| Item No. | IP Robot Ball | |
| Image Sensor | Sensor | High Definition Color CMOS Sensor |
| Display Resolution | 1280 x 720 (1Megapixels) | |
| Min. Illumination | 0 Lux (With IR Illuminator) | |
| IR Cut | Yes | |
| Lens | focal length | f:3.6mm |
| Aperture | F:2.4 | |
| Angle of View | 70° | |
| Video | Image Compression | H.264 |
| Image Frame Rate | 30fps maxmium, downward adjustable | |
| Resolution | 720P(1280 x 720), VGA(640 x 480), QVGA(320 x 240) | |
| Image adjustment | The hue, brightness, contrast, saturation, sharpness are adjustable | |
| Flip image | Flip and mirror | |
| Infrared mode | Automatic or manual | |
| Pan/Tilt Angle | Horizontal:355° & Vertical: 120° | |
| Night visibility | 11pcs IR-LEDs, night vision range up to 8 metres | |
| Audio | Input/Output | Supports two-way audio P2P function |
| Built-in Mic & Speaker | ||
| 3.5mm audio jack for external Mic & Speaker | ||
| Audio Compression | G.726 | |
| Network | Ethernet | One 10/100Mbps RJ45 port |
| Wireless Standard | IEEE802.11b/g/n | |
| Wireless Security | WEP, WPA, WPA2 | |
| WPS | Supports WPS one button push wireless connection | |
| Network Protocol | IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, DDNS, UPnP, RTSP, WPS | |
| System Requirements | Operating System | Microsoft Windows 2000/XP, Vista, 7 |
| iOS, Android | ||
| Browser | Microsoft IE6 and above version or compatible browser | |
| Mozilla Firefox | ||
| Google Chrome | ||
| Apple Safari | ||
| Other Features | Micro SD / TF slot | Yes. Max 32GB |
| Motion Detection | Alarm via E-Mail, upload alarm snapshot to FTP | |
| Reset | Reset button is available | |
| Power | Power Supply | DC 5V/2.0A |
| Power Consumption | 3 Watts (Max.) | |
| Physical | Dimension(LxWxH) | 117(L)*114(W)*129(H) mm |
| Gross Weight | 680.7g | |
| Net Weight | 350g | |
| Environment | Operating Temperature | 0° ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 20% ~ 85% non-condensing | |
| Storage Temperature | -10°C ~ 60° (14°F ~ 140°F) | |
| Storage Humidity | 0% ~ 90% non-condensing | |
| Certification | CE, FCC, RoHS | |
| Warranty | Limited 2-year warranty | |
| Optional | WPS | |
| P2P | ||
| Audio Cable |
