Mini NVR Specifications - 4 Channel
1080P
Motion
Detection
3G / Wifi
4 Channel
Colors available:
Key Features
• Can connect IP camera, IP speed dome camera and DVS; support Onvif protocol.
• Compatible with main brand IP cameras: HDX, AXIS, SONY, Panasonic, SANYO, BOSCH, SAMSUNG, Honeywell, VIVOTEK, Ambarella, HIKVISION, DAHUA, Histream, Grandstream, TOPSEE, Launch, WISION, HYVISION, WAPA etc.
•Support megapixel HD network video preview, storage and playback
• Pan, Tilt, Zoom controls
• Supports digital zooming under preview and playback modes
• Search, playback and backup by event
• Support 4ch playback simultaneously
• File recording on USB drive
• Supports 3G / Wifi dongle internet connection for easy installation anywhere.
• Mini Size with powerful features comparable to full sized NVR systems

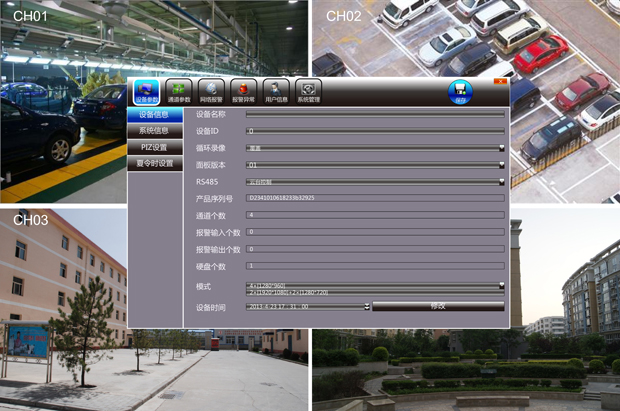

Setup View
Specifications - NVR 4 Channel, 8 Channel, 16 Channel
| Features | 4CH Mini NVR |
| Video Compression | H.264 Main Profile /Motion JPEG |
| System | |
| OS | Embedded Linux |
| System | 4CH 1080p 30fps Preview, Recording & Playback, USB Backup |
| UI | |
| Configuration | OSD, Web |
| Display | 1/4 Display |
| Language | |
| Video | |
| Preview | 1080P(1920x1080) 30fps / 960P (1280x960) 30fps / 720P (1280x720)30fps |
| Playback | 4ch playback in 4ch 720/960P mode;1ch 1080P playback in 1/4ch 1080P mode |
| Recording | 4ch playback in 4ch 720/960P mode;1ch 1080P playback in 1/4ch 1080P mode |
| Motion Detection | in 1/4ch 1080P mode |
| Audio | |
| Audio Compression | G.711 |
| Recording | |
| Recording | Manual/Alarm/Motion Detection/Time |
| Search | By Channel/Time/Date/Event |
| Recording and Backup | |
| Storage Device | Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup |
| Backup | USB Devices |
| Interface | |
| Video Output | 1 x VGA + 1 x HDMI(1920*1080) |
| HDD | 1 x SATA interface |
| Network Interface | 1 RJ45 10M/100M LAN Port |
| USB 2.0 | 2 USB2.0, Mouse, Backup, 3G, Wifi dongle |
| Power Supply | 5VDC 2A |
| Others | |
| Working Temperature | -20°C - 55°C |
| Working Humidity | 10% - 9O% （No Freeze) |
| Power Consumption | <5W |
| Dimension | Unit: 88 x 88 x 32mm Packaging: 185.5 x 115.5 x 35mm |
| Weight | Unit: 105g Gross 250g |
| Packaging | 30 pcs/carton. Size: 365 x 350 x 188mm Weight: 8kg |
