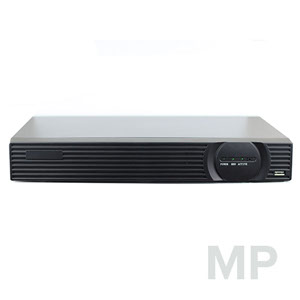

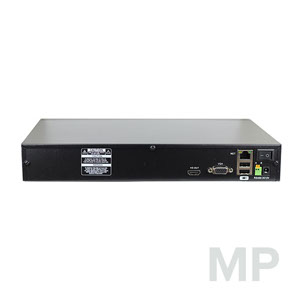

NVR Specifications
1080P
Motion
Detection
Colors available:

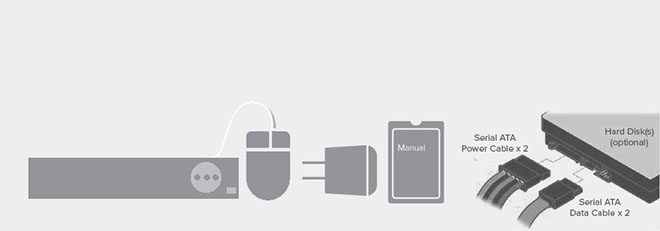

In the box
Specifications - NVR 4 Channel, 8 Channel, 16 Channel
| Features | 4CH NVR | 8CH NVR | 16CH NVR |
| Video Compression | H.264 Main Profile /Motion JPEG | H.264 Main Profile /Motion JPEG | H.264 Main Profile /Motion JPEG |
| System | |||
| OS | Embedded Linux | Embedded Linux | Embedded Linux |
| System | 4CH 720p Priview,Recordingg & Playback,Multi-users Access,USB Backup | 4CH 720p Priview,8CH VGA 8CH 720p Recordingg 4CH 720p Playback Multi-users Access,USB Backup |
4CH 720p Priview,8CH VGA,16CH
VGA 16CH 720p Recordingg 4CH 720p Playback Multi-users Access,USB Backup |
| Main Processor | SoC | SoC | SoC |
| UI | |||
| Configuration | OSD, Web | Web | Web |
| Display | 1/4 Display | 1/4/9 Display(Web) | 1/4/9/16 Display(Web) |
| Language | English, French, Russian, Chinese | English, French, Russian, Chinese | English, French, Russian, Chinese |
| Video | |||
| Preview | 4CH 720P | 4CH 720P,8CH VGA | 4CH 720P,8CH VGA,16CH VGA |
| Playback | 4CH 720P | 4CH 720P | 4CH 720P |
| Recording | 4CH 720p | 8CH 720p | 8CH 720p |
| Motion Detection | 396（22×18）Detect Area; 6 Level Detect Sensitities | 396（22×18）Detect Area; 6 Level Detect Sensitities | 396（22×18）Detect Area; 6 Level Detect Sensitities |
| Audio | |||
| Audio Compression | G.711 | G.711 | G.711 |
| Recording | |||
| Recording | Manual/Alarm/Motion Detection/Time | Manual/Alarm/Motion Detection/Time | Manual/Alarm/Motion Detection/Time |
| Search | By Channel/Time/Date/Event | By Channel/Time/Date/Event | By Channel/Time/Date/Event |
| Recording and Backup | |||
| Resources | Video：25～1800M Bytes/Hour | Video：25～1800M Bytes/Hour | Video：25～1800M Bytes/Hour |
| Storage Device | 2 SATA Hard Disk 3T | 2 SATA Hard Disk 3T | 2 SATA Hard Disk 3T |
| Backup | USB Devices | USB Devices | USB Devices |

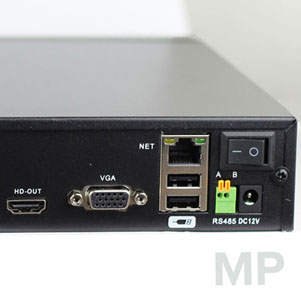

| Interface | |||
| Video Output | VGA(1920*1080p),HDMI(1920*1080p) | VGA(1920*1080p),HDMI(1920*1080p) | VGA(1920*1080p),HDMI(1920*1080p) |
| SATA | 2 SATA | 2 SATA | 2 SATA |
| Network Interface | 1 RJ45 10M/100M | 1 RJ45 10M/100M | 1 RJ45 10M/100M |
| USB 2.0 | 2 USB2.0, Mouse,Backup | 2 USB2.0, Mouse,Backup | 2 USB2.0, Mouse,Backup |
| Power Supply | 12VDC 4A | 12VDC 4A | 12VDC 4A |
| Others | |||
| Working Temperature | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C |
| Working Humidity | 20% - 8O% （No Freeze) | 20% - 8O% （No Freeze) | 20% - 8O% （No Freeze) |
| Storage Temperature | -10℃ to 60℃ | -10℃ to 60℃ | -10℃ to 60℃ |
| Storage Humidity | 0% ~90% （No Freeze） | 0% ~90% （No Freeze） | 0% ~90% （No Freeze） |
| Power Consumption | <10W | <10W | <10W |
| Dimension | |||
| Weight | <1Kg | <1Kg | <1Kg |
